HCT-1512 12-head EMBROIDERY MACHINE

NEW PRODUCT !!!!

The HCT-1512 12-head embroidery machine is the flagship of the HCT-series line of multi-heads from HappyJapan.  With 12 sewing heads able to produce embroidered goods a dozen at a time, combined with the HCT series’ advanced features like DTS, a dynamic presser foot system, and high speed servo drive, the HCT-1512 delivers high-quality embroidery with very little effort for businesses requiring maximum production volume.

Machine Brochure
  • WiFi Compatible
  • Network up to 255 machines together
  • Barcode scanner-ready

TRADE-INS ACCEPTED !



CLICK HERE to inquire.

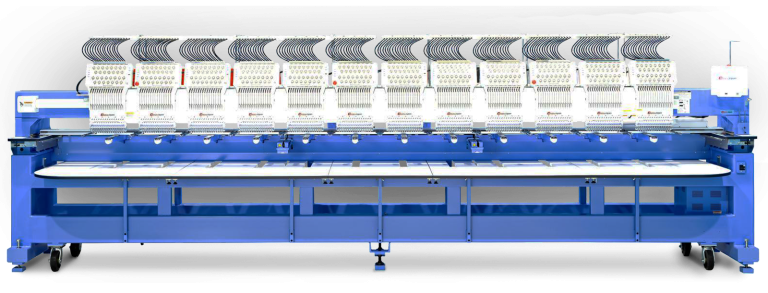

HappyJapan HCT-1512 12-head embroidery machine
HCT-1512

HCT MULTI-HEADS WILL REVOLUTIONIZE WORKFLOW, PRODUCTIVITY

HCT-Series comes with so many practical improvements and new technologies that it will revolutionize embroidery operation over its predecessors.  Read on to find out more.

HCT series digital tension
Digital Tension system for HappyJapan HCT-Series

Check out these great benefits

HCT series digital tension

Digital Tension System Changes the Game

  • HCT-series' DTS greatly simplifies this critical setting for production embroidery. This makes it easier and faster for operators at just about any experience level to produce high quality embroidery like a seasoned pro!

Digital Presser Foot, Auto fabric thickness detection

  • The HCT series' smart presser foot system dynamically optimizes the presser foot stroke for constantly changing conditions and different fabric thicknesses. This allows the machine to embroider effortlessly on a very wide variety of materials with little to no operator input.


Easy Touchscreen Control Panel

  • The large, 10.4” touchscreen control panel is intuitively laid out, requiring an absolute minimum of button presses to accomplish the most common tasks. Key functions for setting up and running designs are found on the main screen, requiring no menu-diving. Operators love the HCT-series multi-heads from HappyJapan - the user-friendliness reduces training time while boosting production and profitability!
slim profile, picker-less sewing arm

Slim Profile, picker-less sewing arm

  • The new cylinder arm is much smaller in diameter over previous models. This facilitates embroidery on narrower tubular goods such as shirt sleeves, pockets, gloves, and more. Its keeper-less design enables smoother thread changes.
HCT upper thread feed system

Simplified upper thread feed system

  • Continuous tubes run from above the thread cones all the way to the top of the sewing head, allowing threading to be done instantaneously with compressed air - a huge time saver when threading or changing colors.
HCT improved frame sash thickness

Heavier-Duty Frame Connection Sash

  • Frame sash thickness has been upgraded to increase durability and reduce vibration. This enables embroidery at the extremely high sewing speeds that the HCT-series is capable of.
Get a Free Quote

REVOLUTIONIZE your embroidery production. BOOST quality, productivity and potential profit.

NEW TECHNOLOGIES/IMPROVEMENTS:

  • Digital tension system (DTS)
  • Digital presser foot / automatic fabric detection system
  • Ultra-slim profile, picker (keeper)-less sewing arm
  • Improved sewing head and mounting sash system for higher operating speeds
  • Improved thread flow for smoother thread feed at all operating speeds
  • Simplified threading with slotted presser foot & thread stand tube system
  • Improved cap sewing ability: 3.74″ high cap sewing field, redesigned sewing head easily handles both curved and flat brimmed caps
  • Tool-less swap between tubular (flat) goods sewing and cap sewing system
Standard Features:
  • Color LCD touchscreen panel
  • Customizable front screen apps
  • USB/LAN ports for direct PC connection
  • Built-in help, auto-error correction
  • Combine designs & text directly onscreen
  • Built-in lettering & stock designs
  • Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
  • Import any compatible 3rd-party hoop onscreen for accurate positioning
  • Load, set up additional designs while machine is running


Maximize productivity and product quality with HappyJapan multi-head embroidery machines.

Get a Free Quote

Specifications & Features

  • Sewing field per head: tubular goods 14.1in wide x 17.7in deep, finished ballcaps 14.1in wide x 3.74 in high
  • Operating speed: 1100 stitches/min on flat goods, 1000 stitches/min on ballcaps
  • Auto Mend Mode keeps each head in synch in case of thread breaks or other stoppages
  • Operator login, auto reporting helps you keep track of productivity & machine health
  • Memory: 100 million stitches / 3000 designs, 100 built-in stock designs
  • Onboard Lettering: 12 fonts ranging from 2" tall to 1/4" tall

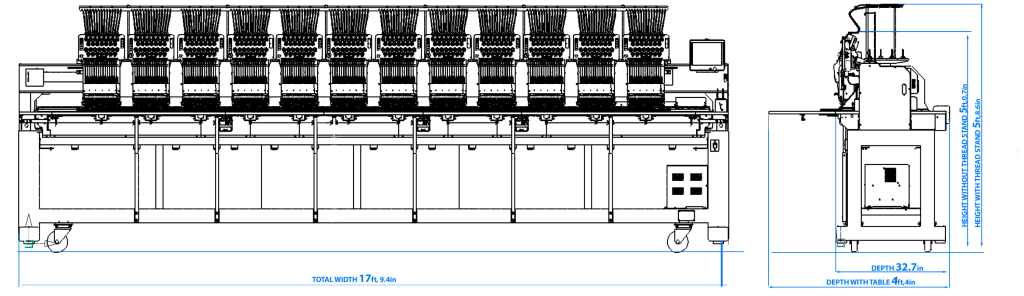

  • Dimensions: 32.7in deep (with table removed) x 7ft6in w x 5ft 9in tall
  • Power requirements: Single Phase 200-240V, 720W, 60Hz
  • Weight: 2,464 lbs

Included with the machine:

  • Complete tubular hoop set, 2 hoops per head:
    • 16ea. 32cm (12in) square hoops
    • 16ea. 18cm (7.1in) round hoops
    • 16ea. 15cm (5.9in) round hoops
    • 16ea. 12cm (4.7in) round hoops
  • Complete cap sewing kit, including:
    • 16ea. Wide-field cap frames
    • Cap stretcher
    • 8ea. Cap drivers
    • 4ea. Cap sashes
  • Repositionable support table
  • Heavy-duty casters & attachment hardware
  • Operator’s toolkit
  • HappyLINK, HappyLAN connection software, parts & operator’s manuals (in PDF form)
Get a Free Quote

10 Year Warranty on new HappyJapan embroidery machines exclusively through
TEXMAC

We’re so confident you’ll love our single-head embroidery machines that we offer an 10-year warranty. We stand firmly behind the resilience and performance of our machines. Join thousands of satisfied customers who trust HappyJapan’s commitment to quality and excellence. Invest in a machine backed by a solid 10-year warranty guarantee today.
