SUPPORT PAGE FOR HCU-SERIES 15-needle machineS

On this page, you’ll find support resources for HappyJapan’s HCU-series 15-needle heavy-duty embroidery machine. This includes resources for both the first-generation HCU-1501 (introduced Jan. 2020) and the second-generation HCU2-1501 (introduced summer 2023).

For new operators, please note that many machine problems can be resolved by reviewing proper operating procedure and maintenance. These topics are covered in the series of videos further down the page in the section titled, “Learning: Operating/Maintaining the HCU-Series”.

Below are the links for the operator’s and parts manuals for the machine:

Manuals for HCU2-1501

Click to download the instruction manual for the HCU2-1501.

Click to download the parts list / manual for the HCU2-1501.

Manuals for HCU-1501

Click to download the instruction manual for the HCU-1501.

Click to download the parts list / manual for the HCU-1501.

Important Links & Announcements

Contacting Support: click the Contact Us button at the top of this page to send a message to Support. Texmac customers can call the Technical Support number found at the top of this page.
Latest Firmware click here to go to the firmware page for links and instructions
Learning Your Machine To learn to set up, operate and maintain your HappyJapan embroidery machine, see the section below for learning resources.

Learning Your HCU-Series Embroidery Machine

To learn how to set up, operate, and maintain your machine, the following resources are available to you:

Training classes and webinars: take advantage of classroom training being held at various locations. Additionally, Texmac hosts hour-long live webinars regularly that you can join, ask questions and learn from our experienced instructors. To see class and webinar information and schedule, GO HERE to our Events page.
Texmac YouTube Channel – To see the complete library of learning, support and demonstration videos, CLICK HERE.
Setup, Learning and Maintenance Videos: Follow the lists of videos below, in the suggested order, to learn how to set up, operate, and maintain your machine.

Learning: HCU-Series Embroidery Machine Setup

Follow the linked videos in this section in order to learn how to unbox and set up your HCU2-1501 embroidery machine.

Learning: Operating/Maintaining the HCU-Series Embroidery Machine

Follow the linked videos in this section in order to learn how to unbox and set up your HCU2-1501 embroidery machine.

List of Common Error Codes & Resolutions

E-050 C-Point – machine has failed to return the main shaft position to its at-rest position (270 degrees) after it last stopped. If AUTO does not clear this error, turn off the Brake from Maintenance mode, go to the back of the machine, remove the 2 round black rubber caps , insert a 3mm Allen wrench into the socket of the main shaft dial and try to manually turn the dial clockwise until C point is at the pointer (270 degrees). While doing this, turn the shaft all the way around to make sure it can do so without any resistance.
E-018 Main Shaft – unusual mechanical resistance was encountered as the main shaft tried to turn. In troubleshooting, first disable the machine Brake from maintenance mode (the Brake button will be highlighted in pink when this is done), then go to the back of the machine, remove the 2 x round 1-inch black rubber access covers and with a 3mm hex / Allen wrench, try to turn the main shaft clockwise by hand. Make sure it is not blocked from turning, and will turn all the way around. It should turn smoothly with only a little resistance. If there is blockage or resistance, attempt to find the source and remove it. Be sure to leave the main shaft at 270 degrees after turning the dial, and re-enable the Brake by pressing that button again.
E-021, 022, 024 – needle move, needle center. The head failed to move enough left-right to completely to the current needle position. It may be off even slightly, so try moving the knob in small increments, ensuring the red mark on the knob aligns with the red mark on the machine body. Also ensure them main shaft is at C point (270 degrees).
E-020, 026 – needle detect, needle differ. Machine is unsure or incorrect about which needle number is currently sitting over the needle plate.
E-051, 052 – C and L sensors may be dirty or out of alignment with the shaft. Access the C and L sensors, clean, and check that the slit disk for each sensor is appropriately centered between each set of sensor nodes.
E-060 X-Limit, E-061 Y-Limit – Part of the design will sew outside of allowable limits. Adjust design position, reduce size, or select a different hoop.
E-114 Id Over –too many designs in memory. Go into the Pattern screen and delete 1 or more designs to clear memory space.
E-190 Cut Blade –the moving knife has failed to fully return to the closed position. To resolve, remove the needle plate and inspect the moving knife, removing any bits of thread or other debris that may be impeding its movement, then attempt to cycle the cut system again to clear the error.
E-193 Catcher – this is caused by the catcher (upper thread hook) failing to fully retract upwards. This can either be due to a catcher problem, or, if the thread is still not cut after a cut cycle, the catcher tried to grab the uncut thread, which is strong enough to prevent the catcher from retracting. In the latter case, the machine had a problem cutting, which in turn caused the catcher error.

Simple user interface reduces the learning curve, speeds up output, and enhances quality.

The 7-inch LCD touchscreen provides clear and easy design adjustments.
Design placement features ensure precision in every stitch.
Essential sewing info is always a glance away.
A customizable interface enhances your machine interaction.
One-touch features like frame out and design trace simplify tasks.
Built-in networking with USB ports offers versatile connectivity.
Auto-correction minimizes manual troubleshooting.
Advanced thread management prevents interruptions
Control speed, position, and color for tailored embroidery settings.

Need more power or output? Check out Texmac’s other HappyJapan Embroidery Machines.

12-Needle Voyager | HCS3-1201 Voyager Embroidery Machine

Compact yet powerful, the 12-needle Voyager boasts a robust sewing motor and heavy-duty components for sustained high-speed production.
Its redesigned sewing head offers improved threading, while the built-in laser marker aids precision.
The machine's ultra-slim profile sewing arm offers enhanced flexibility, and its memory capacity ensures you never run out of design storage space.

15-Needle HCD | HAPPY HCD3e-1501 Embroidery Machine

The HAPPY HCD3e-1501 stands out as a full-sized, heavy-duty embroidery powerhouse.
With 15 needles, a large sewing field, and a robust drive system, it can easily handle delicate and demanding projects.
Its 1200 spm max operating speed and 24-hour continuous operation capacity make it ideal for nonstop, year-round production.

HCD3 1-Head Servo | HCD3 1-Head Embroidery Machine

Built for speed and precision, the 15-needle HCD3 features an advanced servo drive system, optimizing efficiency and stitch quality on challenging materials.
This machine shares the durability and capability of the HCD3e but with smoother operations at higher speeds.
With a vast sewing field and impressive operating speeds, it's tailored for heavy-duty commercial use, ensuring quality results every time.

Happy HCU 15-needle | HCU2-1501 Series Heavy-Duty Commercial 1-Head Embroidery Machine

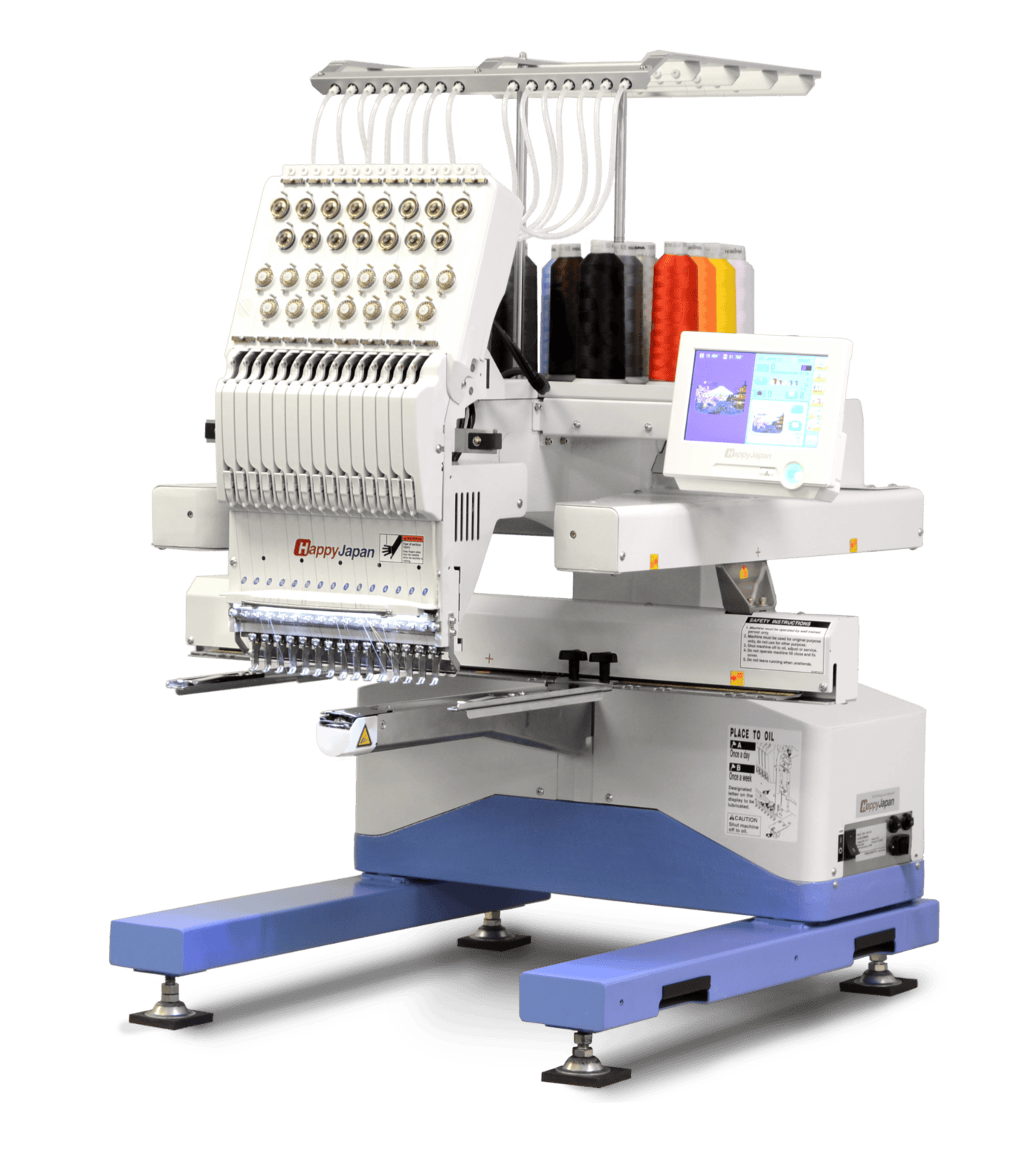

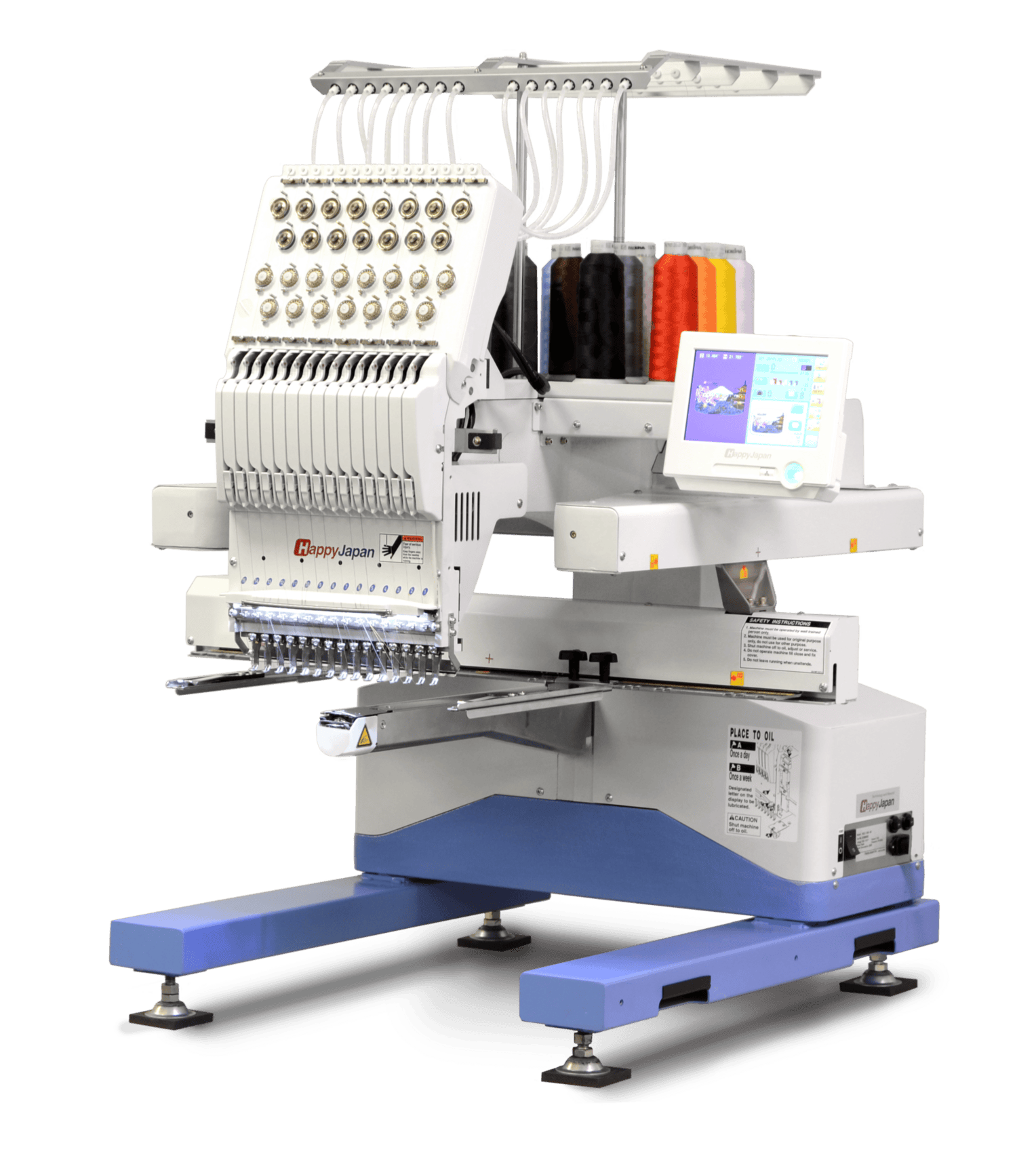

The HCU2-1501 emerges as the flagship of heavy-duty embroidery machines with its 15-needle configuration and a generous 23.5" x 15.7" sewing field.
