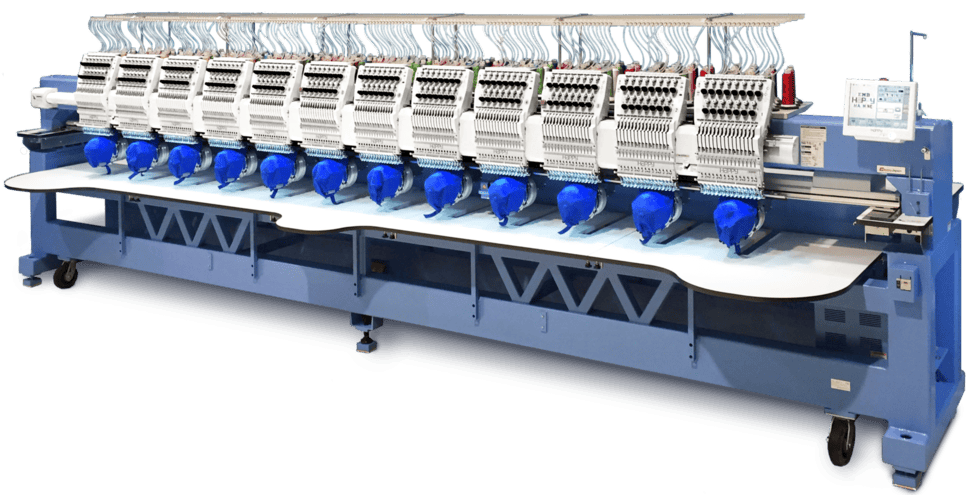

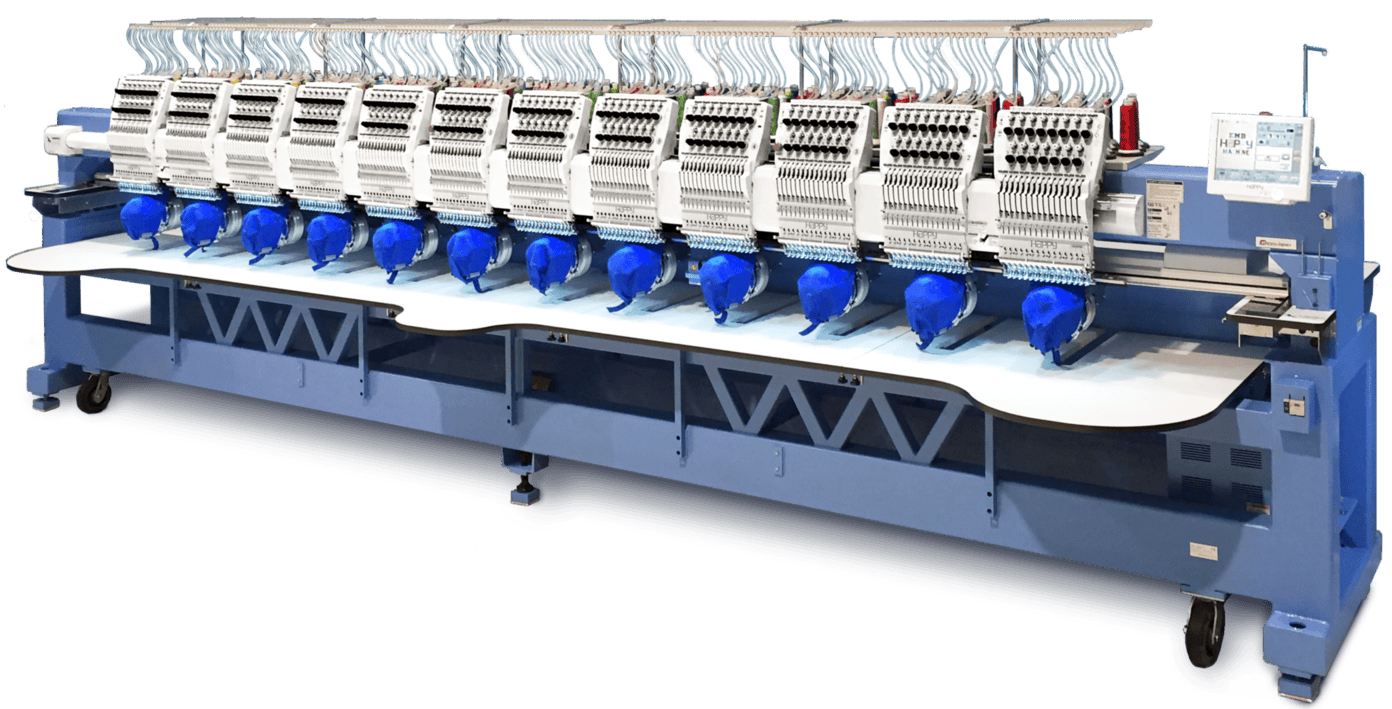

HCR3-1512 12-head embroidery machine

 The HCR3-1512 12-head embroidery machine is the flagship of the lineup of commercial multi-head embroidery machines from HappyJapan.

HappyJapan 12-head embroidery machine
HCR3-1512

The fastest, most capable 12-head ever

The flagship of HappyJapan’s multi-head line, the 12-head HCR3-1512 boasts the company’s latest technology in multi-head machines.  With servo drive system, improvements to the sewing head, as well as durability, stability, and ergonomic upgrades, this is Happy’s fastest, most capable 12-head ever.  For those looking for the ultimate in embroidery production capability, look no further than the HCR3-1512 from HappyJapan.

HappyJapan 12-head embroidery machine
HCR3-1512

Check out these GREAT benefits


Amazing Embroidery On Ball Caps

Easy Maintenance


Easy Touchscreen Control Panel

The flagship of the multi-head line

Standard Features:

  • Color LCD touchscreen panel
  • Customizable front screen apps
  • USB/LAN ports for direct PC connection
  • Built-in help, auto-error correction
  • Combine designs & text directly onscreen
  • Built-in lettering & stock designs
  • Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
  • Import any compatible 3rd-party hoop onscreen for accurate positioning
  • Load, set up additional designs while machine is running


Create professional-quality designs with HappyJapan precision embroidery machines.

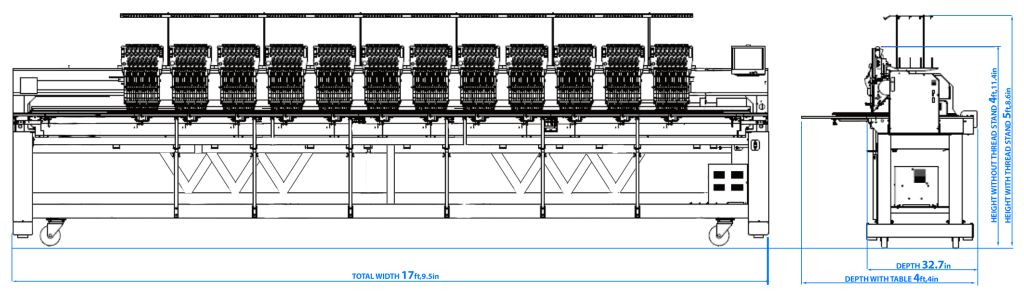

Dimensions list:

  • L (length) – 5420mm / 17ft 9in
  • D1 – 830mm / 33in
  • D2 – 1320mm / 52in
  • H1 – 1510mm / 59.5in
  • H2 – 1740mm / 68.5in
  • Weight: 1470Kg / 3234 lbs
  • Maximum speed: 1100spm tubular / 1000spm caps
  • Maximum embroidery area on tubular/flat goods: 360mm x 450mm (14.2in x 17.7in)
  • Maximum embroidery area on finished ballcaps: 80mm x 360mm (3.1”h x 14.1”w)
  • Power requirements: Single Phase 200-240V, 540W, 60Hz
  •
  •

Included with the machine:

  • Operator’s toolkit
  • HappyLINK, HappyLAN connection software, parts & operator’s manuals
  • Complete tubular hoop set, 2 hoops per head:
    • 24ea. 32cm (12in) square hoops
    • 24ea. 18cm (7.1in) round hoops
    • 24ea. 15cm (5.9in) round hoops
    • 24ea. 12cm (4.7in) round hoops
  • Complete cap sewing kit, including:
    • 24ea. Wide-field cap frames
    • Cap stretcher
    • 12ea. Cap drivers
    • 6ea. Cap sashes
  • Repositionable support table
  • Heavy-duty casters & attachment hardware

Take your embroidery to the next level!

Equip your business with easy-to-use multi-head embroidery machines.

Real stories from our successful customers

8 Year Warranty on new HappyJapan embroidery machines exclusively through
TEXMAC

We’re so confident you’ll love our single-head embroidery machines that we offer an 8-year warranty. We stand firmly behind the resilience and performance of our machines. Join thousands of satisfied customers who trust HappyJapan’s commitment to quality and excellence. Invest in a machine backed by a solid 8-year warranty guarantee today.

Choosing the right embroidery machine is paramount for your success

Without an unreliable single-head embroidery machine, your business could face unpredictable breakdowns, inconsistent stitch quality, and financial loss. This can slow production rates and tarnish your brand’s reputation in a competitive marketplace. Choosing HappyJapan’s single-head embroidery machines equips your business with precision, speed, and reliability. Let us guide you to a future of seamless operations, delighted customers, and unrivaled embroidery excellence.
