 The HCR3-X1506 delivers 6-head production with a an extended sew field of 19.7″w x 17.7″h and advanced servo drive.

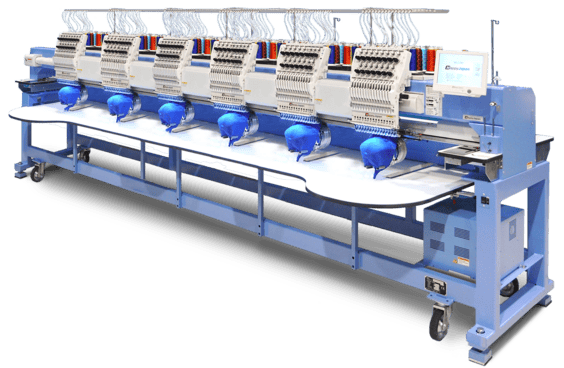

HappyJapan 6-head stretched-field multi-head embroidery machine

Large-field embroidery in high volume

The HCR3-X1506 is for the production embroiderer who wants no compromise: this machine will produce large-field embroidery in high volume.  The HCR3 technology engineered into the 1506X will serve to carry on HAPPY’s reputation for producing ultra-durable, high-quality equipment. Servo motors let the 1506x operate at higher speeds with smoother, quieter operation. With redesigns and reinforcing throughout the frame and drive system, there is a noticeable improvement on durability, steadiness and overall sewing quality, even on challenging surfaces.

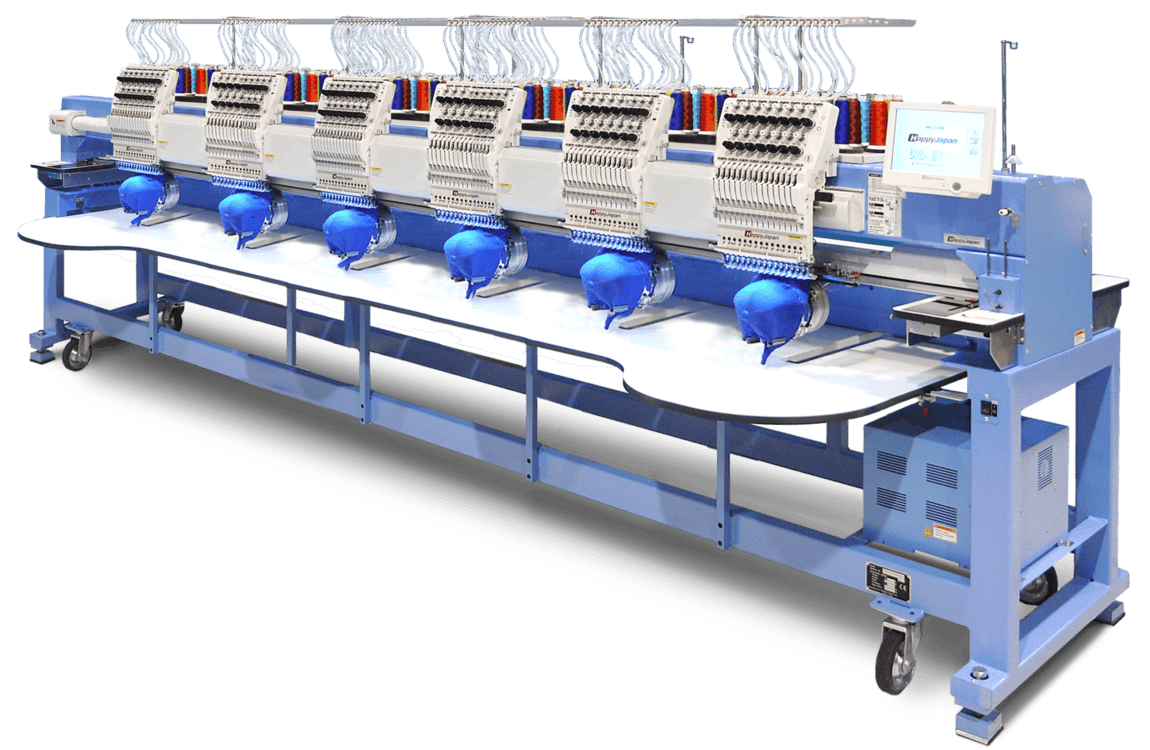

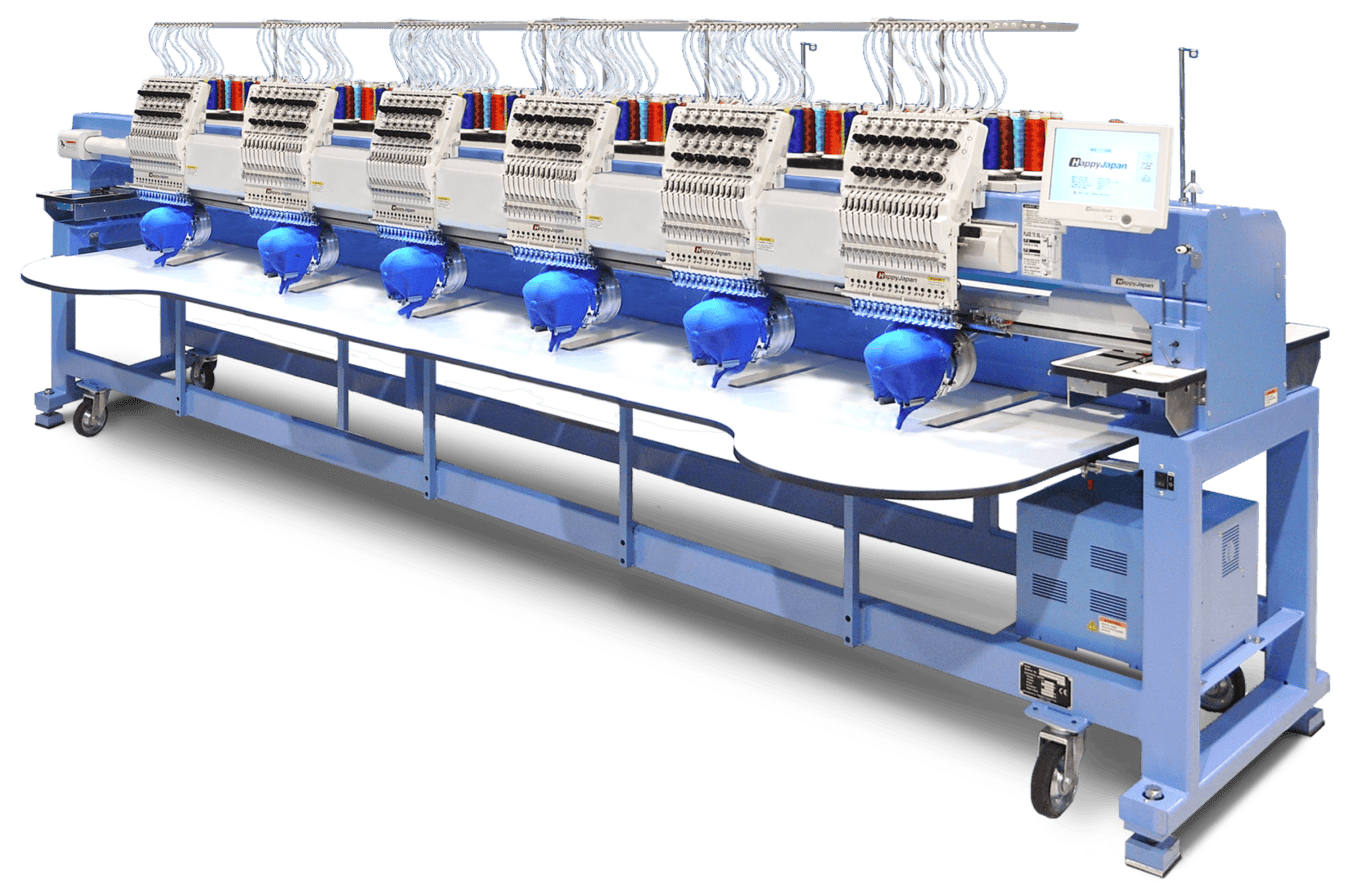

HappyJapan 6-head stretched-field multi-head embroidery machine

Check out these GREAT benefits

Amazing Embroidery On Ball Caps

Easy Maintenance

Easy Touchscreen Control Panel

For the embroiderer that wants no compromise!

Standard Features:

  • Color LCD touchscreen panel
  • Customizable front screen apps
  • USB/LAN ports for direct PC connection
  • Built-in help, auto-error correction
  • Combine designs & text directly onscreen
  • Built-in lettering & stock designs
  • Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
  • Import any compatible 3rd-party hoop onscreen for accurate positioning
  • Load, set up additional designs while machine is running

Create professional-quality designs with HappyJapan precision embroidery machines.

Dimensions list:

  • (length) – 3980mm / 156.7in
  • D1 – 830mm / 33in
  • D2 – 1320mm / 52in
  • H1 – 1510mm / 59.5in
  • H2 – 1740mm / 68.5in
  • Weight: 1030Kg / 2266 lbs
  • Maximum speed: 1100spm tubular / 1000spm caps
  • Maximum embroidery area on tubular/flat goods: 500mm x 450mm (14.2in x 17.7in)
  • Maximum embroidery area on finished ballcaps: 80mm x 360mm (3.1”h x 14.1”w)
  • Power requirements: Single Phase 200-240V, 410W, 60Hz

Included with the machine:

  • Operator’s toolkit
  • HappyLINK, HappyLAN connection software, parts & operator’s manuals
  • Complete tubular hoop set, 2 hoops per head:
    • 12ea. 44cm x 42cm (17.25in x 16.5in) rectangular hoops
    • 12ea. 32cm x 32cm  (12in x 12in) square hoops
    • 12ea. 15cm (5.9in) round hoops
    • 12ea. 12cm (4.7in) round hoops
  • Complete cap sewing kit, including:
    • 12ea. Wide-field cap frames
    • Cap stretcher
    • 6ea. Cap drivers
    • 3ea. Cap sashes
  • Repositionable support table
  • Heavy-duty casters & attachment hardware

Take your embroidery to the next level!

Equip your business with easy-to-use multi-head embroidery machines.

10 Year Warranty on new HappyJapan embroidery machines exclusively through

We’re so confident you’ll love our single-head embroidery machines that we offer an 10-year warranty. We stand firmly behind the resilience and performance of our machines. Join thousands of satisfied customers who trust HappyJapan’s commitment to quality and excellence. Invest in a machine backed by a solid 10-year warranty guarantee today.

Choosing the right embroidery machine is paramount for your success

Without an unreliable single-head embroidery machine, your business could face unpredictable breakdowns, inconsistent stitch quality, and financial loss. This can slow production rates and tarnish your brand’s reputation in a competitive marketplace. Choosing HappyJapan’s single-head embroidery machines equips your business with precision, speed, and reliability. Let us guide you to a future of seamless operations, delighted customers, and unrivaled embroidery excellence.
