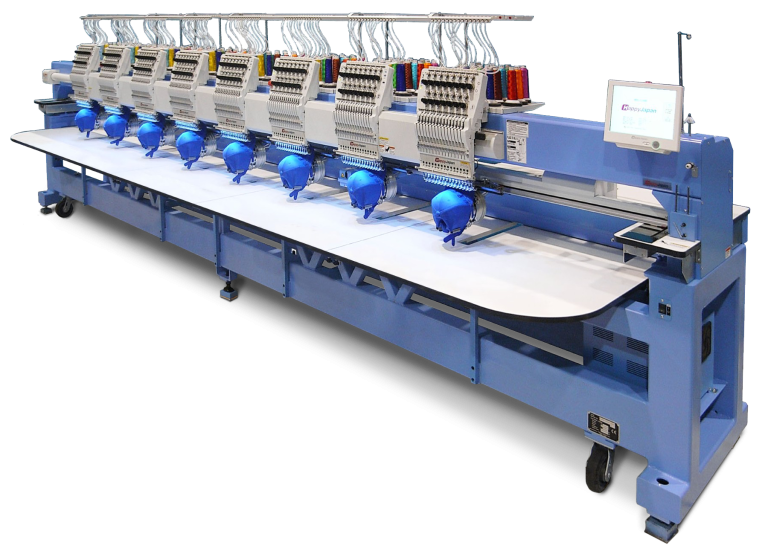

HCR3-X1508 STRETCHED-FIELD 8-head machine


* Payment based on 72-month term, 10% down payment for well-qualified buyers. Rates subject to change. Pricing reflects standard machine package.

 The HCR3-X1508 delivers 8-head production with a an extended sew field of 19.7″w x 17.7″h and advanced servo drive.

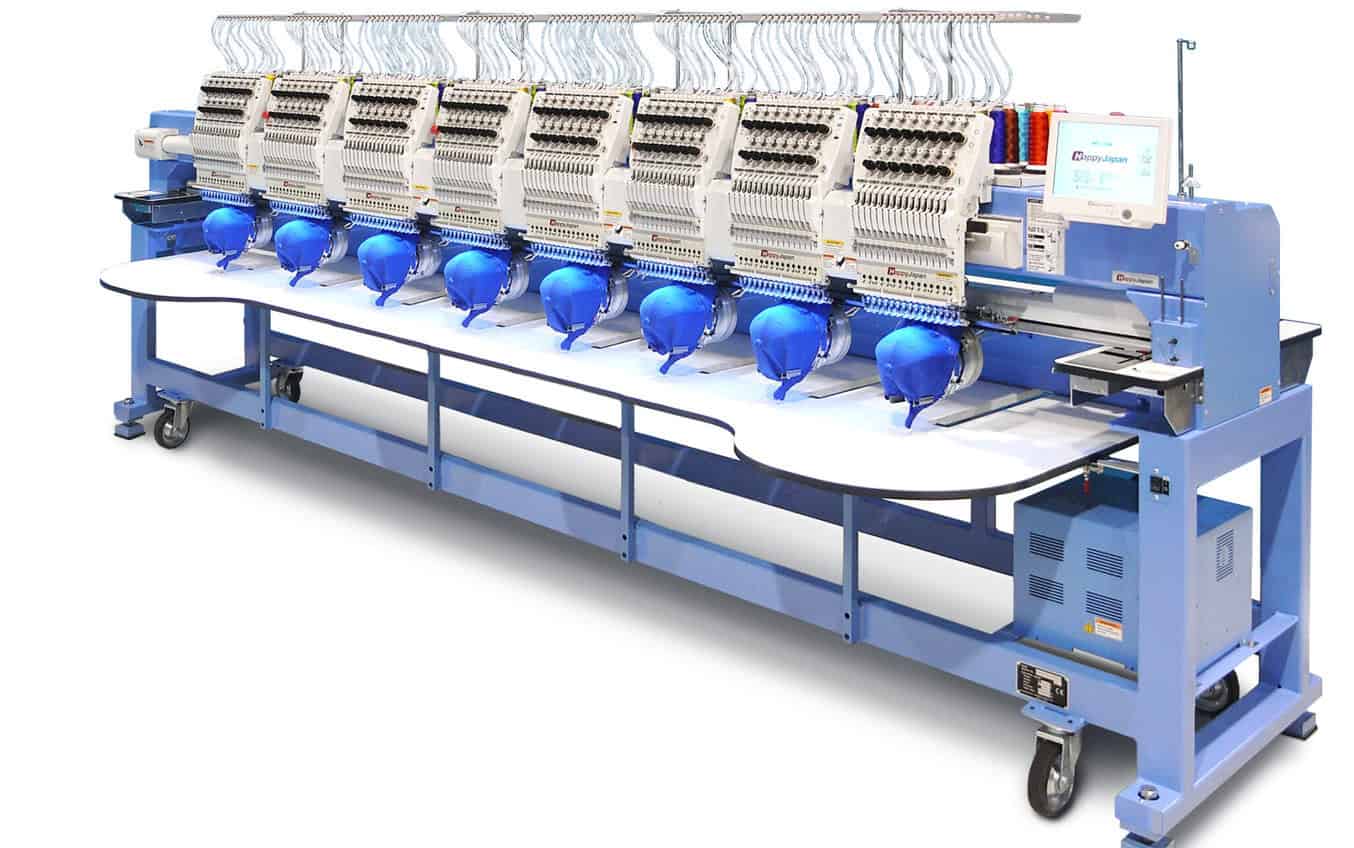

HappyJapan 8-head embroidery machine
HCR3-X1508 (standard field model shown)

For large-field embroidery in high volume

The HCR3-X1508 is for the production embroiderer who wants no compromise: this machine will produce large-field embroidery in high volume.  The HCR3 technology engineered into the 1508X will serve to carry on HappyJapan’s reputation for producing ultra-durable, high-quality equipment. The servo motors let the 1508x operate at higher speeds with smoother, quieter operation. The redesigns and reinforcing throughout the frame and drive system improve durability, steadiness and overall sewing quality, even on challenging surfaces.

HappyJapan HCR3-1508 8-head embroidery machine
HCR3-X1508 (standard field model shown)

Check out these GREAT benefits

Amazing Embroidery On Ball Caps

Easy Maintenance

Easy Touchscreen Control Panel

The strongest and most productive 8-head yet!

Standard Features:

  • Color LCD touchscreen panel
  • Customizable front screen apps
  • USB/LAN ports for direct PC connection
  • Built-in help, auto-error correction
  • Combine designs & text directly onscreen
  • Built-in lettering & stock designs
  • Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
  • Import any compatible 3rd-party hoop onscreen for accurate positioning
  • Load, set up additional designs while machine is running

Create professional-quality designs with HappyJapan precision embroidery machines.

Dimensions list:

  • L (length) – 5420mm / 17.78ft,
  • D1 – 830mm / 33in
  • D2 – 1320mm / 52in
  • H1 – 1510mm / 59.5in
  • H2 – 1740mm / 68.5in
  • Weight: 1470Kg / 3234 lbs
  • Maximum speed: 1100spm tubular / 1000spm caps
  • Maximum embroidery area on tubular/flat goods: 500mm x 450mm (14.2in x 17.7in)
  • Maximum embroidery area on finished ballcaps: 80mm x 360mm (3.1”h x 14.1”w)
  • Power requirements: Single Phase 200-240V, 410W, 60Hz

Included with the machine:

  • Operator’s toolkit
  • HappyLINK, HappyLAN connection software, parts & operator’s manuals
  • Complete tubular hoop set, 2 hoops per head:
    • 16ea. 44cm x 42cm (17.25in x 16.5in) rectangular hoops
    • 16ea. 32cm x 32cm  (12in x 12in) square hoops
    • 16ea. 15cm (5.9in) round hoops
    • 16ea. 12cm (4.7in) round hoops
  • Complete cap sewing kit, including:
    • 16ea. Wide-field cap frames
    • Cap stretcher
    • 8ea. Cap drivers
    • 4ea. Cap sashes
  • Repositionable support table
  • Heavy-duty casters and attachment hardware

Take your embroidery to the next level!

Equip your business with easy-to-use multi-head embroidery machines.

10 Year Warranty on new HappyJapan embroidery machines exclusively through

We’re so confident you’ll love our single-head embroidery machines that we offer a 10-year warranty. We stand firmly behind the resilience and performance of our machines. Join thousands of satisfied customers who trust HappyJapan’s commitment to quality and excellence. Invest in a machine backed by a solid 10-year warranty guarantee today.

Choosing the right embroidery machine is paramount for your success

Without an unreliable single-head embroidery machine, your business could face unpredictable breakdowns, inconsistent stitch quality, and financial loss. This can slow production rates and tarnish your brand’s reputation in a competitive marketplace. Choosing HappyJapan’s single-head embroidery machines equips your business with precision, speed, and reliability. Let us guide you to a future of seamless operations, delighted customers, and unrivaled embroidery excellence.
