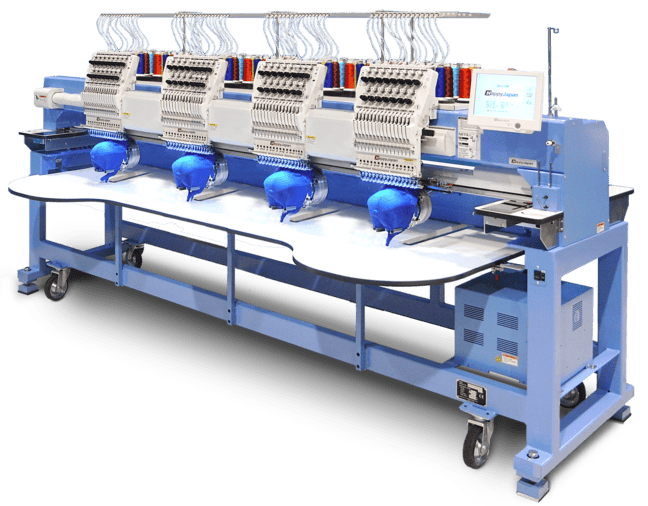

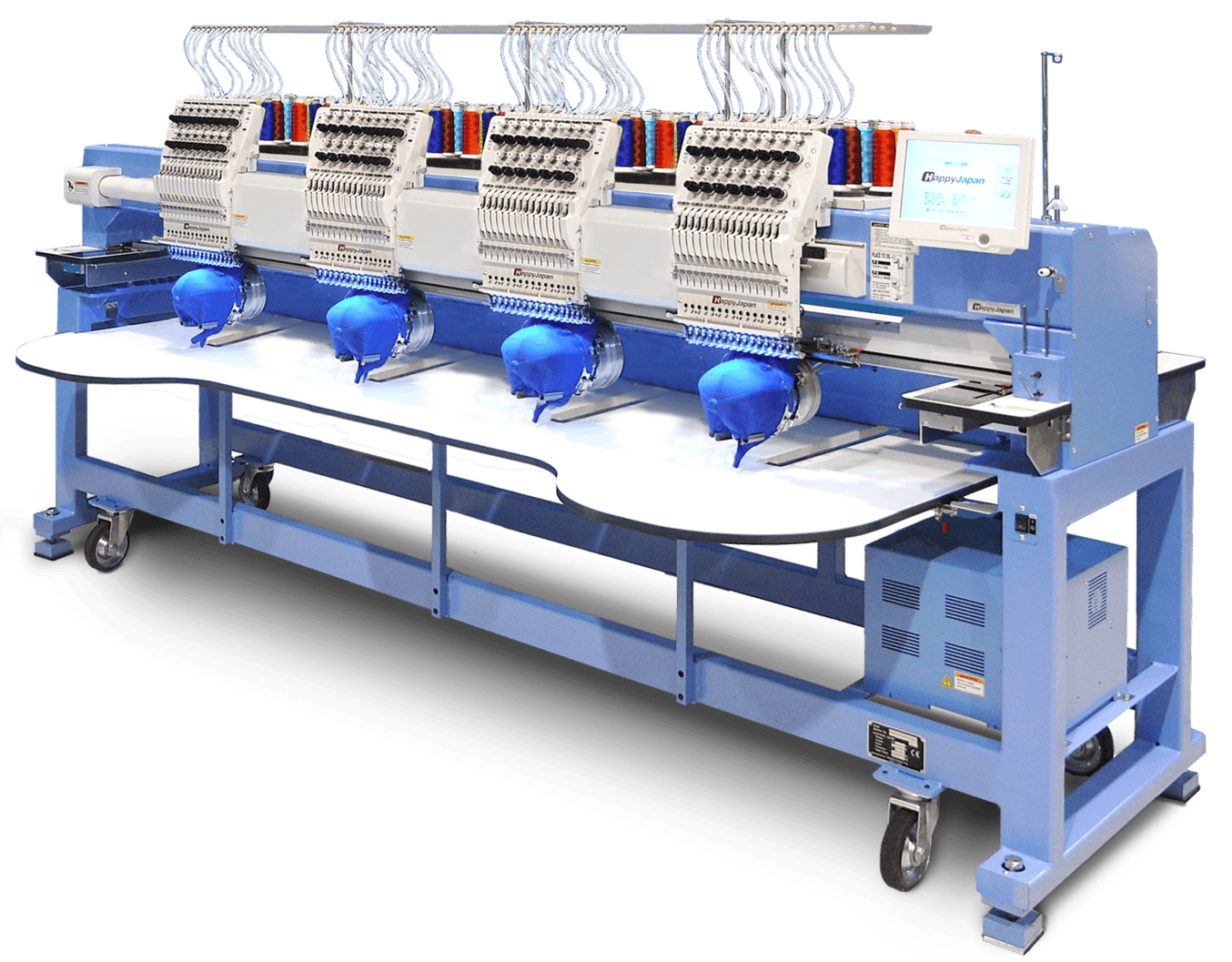

 Stretched-field 4-head servo-drive commercial embroidery machine

Built for high production of large projects


The HCR3-X1504 stretched-field 4-head embroidery machine is built for those who need high production capability and a large sewing field.  The sewing field for each of this machine’s 4 heads has been extended to allow embroidery on the included set of 17.25″ x 16.5″ hoops, making large projects such as team applique uniforms, full jacket backs, or even mass-production of patches possible, and much more efficient. The machine is still compatible with conventional field Happy hoops as well. The HCR3-X1504 includes HAPPY’s latest multi-head technology such as servo drive for faster, quieter sewing, more robust construction for greater durability and more-consistent sewing quality on even the most challenging surfaces.

HappyJapan stretched-field 4-head embroidery machine

Check out these great benefits

Amazing Embroidery On Ball Caps

Easy Maintenance

Easy Touchscreen Control Panel

Take your business to the next level

Standard Features:

  • Color LCD touchscreen panel
  • Customizable front screen apps
  • USB/LAN ports for direct PC connection
  • Built-in help, auto-error correction
  • Combine designs & text directly onscreen
  • Built-in lettering & stock designs
  • Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
  • Import any compatible 3rd-party hoop onscreen for accurate positioning
  • Load, set up additional designs while machine is running

Create professional-quality designs with HappyJapan precision embroidery machines.

Dimensions list:

    • L (length) – 3000mm / 118.1in
    • D1 – 830mm / 33in
    • D2 – 1320mm / 52in
    • H1 – 1510mm / 59.5in
    • H2 – 1740mm / 68.5in
    • Weight: 800Kg / 1,760 lbs
    • Maximum speed: 1100spm tubular / 1000spm caps
    • Maximum embroidery area on tubular/flat goods: 500mm x 450mm (14.2in x 17.7in)
    • Maximum embroidery area on finished ballcaps: 80mm x 360mm (3.1”h x 14.1”w)
    • Power requirements: Single Phase 200-240V, 340W, 60Hz

Included with the machine:

  • Operator’s toolkit
  • HappyLINK, HappyLAN connection software, parts & operator’s manuals
  • Complete tubular hoop set, 2 hoops per head:
    • 8ea. 44cm x 42cm (17.25in x 16.5in) rectangular hoops
    • 8ea. 32cm x 32cm  (12in x 12in) square hoops
    • 8ea. 15cm (5.9in) round hoops
    • 8ea. 12cm (4.7in) round hoops
  • Complete cap sewing kit, including:
    • 8ea. Wide-field cap frames
    • Cap stretcher
    • 4ea. Cap drivers
    • 2ea. Cap sashes
  • Repositionable support table
  • Heavy-duty casters & attachment hardwar
